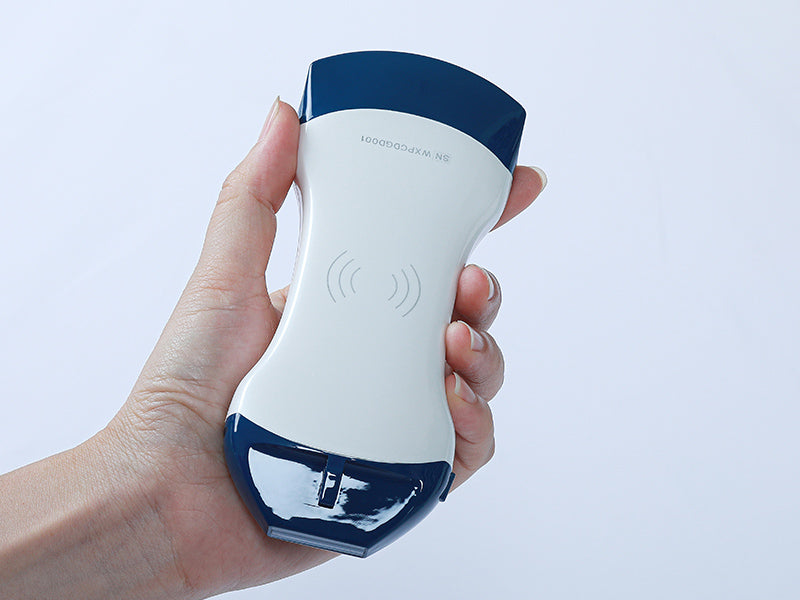

5CP High-Frequency Linear/Convex Dual-Probe Wireless Handheld Color Doppler Ultrasound

Technical Specifications:

• Scanning Method: Electronic Array Scanning

• Probe Frequency: Convex Array 3.2/5.0 MHz, High-Frequency Linear Array 10/12 MHz

• Scanning Transducers: Equipped with both convex array and high-frequency linear array transducers, with quick button switching

• Scan Depth: Convex array 90/160/220/305mm, high-frequency linear array 20/40/60/80mm adjustable

• Scan Angle and Width: Convex array 60°, high-frequency linear array width 25mm

• Display Modes: B, B/M, Color, PW, PDI

• Image Adjustment: Gain, Focus, Inverse Pulse Harmonic, Noise Reduction

• Puncture Assistance: In-plane puncture guidance lines, out-of-plane puncture guidance with automatic vessel measurement, needle tip enhancement

• Battery Life: 3 hours; wireless charging extends operating time indefinitely

• Charging Method: Wireless charging

• Frame Rate: 18 fps

• Measurement Functions: Distance, Area, Perimeter, Heart Rate, Obstetrics

• Movie Playback: Manual and automatic playback with adjustable frame rates (100/200/500/1000 frames)

• Image Saving: Multiple formats (jpg, mp4, png, DCM)

• Probe-to-Host Connection: Wi-Fi wireless connection

• Wi-Fi Type: 802.11n/2.4G/5G dual-band 450Mbps

• Software Supported Systems: Apple iOS, Android, Windows

• Dimensions: 156mm × 60mm × 20mm

• Weight: 250g
