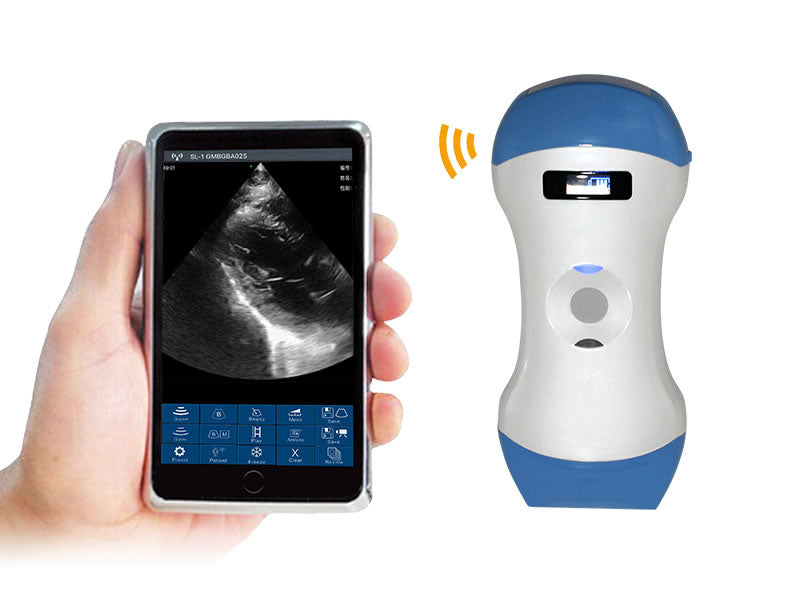

5CPL Wireless Probe Handheld Color Doppler Ultrasound, Convex Array/Linear Array/Phased Array Three-in-One

Product Specifications:

• Scanning Method: Electronic Array Scanning

• Number of Elements: 128

• Number of Channels: 32

• Probe Frequency: Convex Array 3.2/5.0 MHz, Phased Array 2.5/5.0 MHz, Linear Array 7.5/10 MHz

• Scanning Transducers: Simultaneously equipped with convex and linear array transducers, switchable via button. The convex array can also be switched to phased array scanning mode via software.

• Scan Depth: Convex array 90/160/220/305mm, Phased array 90/120/140/160mm, Linear array 20/40/60/80mm (adjustable)

• Scan Angle and Width: Convex array 45°, Phased array 80°, Linear array width 40mm

• Display modes: B, B/M, Color, PW, PDI

• Image adjustments: Gain, Focus, Inverse Pulse Harmonic, Noise Reduction

• Needle guidance features: In-plane needle guidance lines, out-of-plane needle guidance with automatic vessel measurement

• Battery runtime: 3 hours, with wireless charging for unlimited extended operation

• Charging method: Wireless charging

• Frame rate: 18 fps

• Measurement functions: Distance, area, perimeter, heart rate, obstetrics

• Movie playback: Manual and automatic playback with adjustable frame rates (100/200/500/1000)

• Image saving: Multiple formats (jpg, mp4, png, DCM)

• Probe-to-Host Connection: Wi-Fi wireless connection

• Wi-Fi Type: 802.11n/2.4G/5G dual-band 450Mbps

• Software Supported Systems: Apple iOS, Android, Windows

• Dimensions: 156mm × 60mm × 20mm

• Weight: 230g
